RPM-40

This product belongs to T2 class AC power surge protector, integrated base, pluggable module, seismic lock design, with large flow capacity, power grid adaptability, safe and reliable. Can be widely used in various electrical occasions, in LPZ0 to LPZ1 distribution system used as C, D level protection.

  1. System voltage: AC220/380V
  2. Power distribution system: TT、TN-S、TN-C、IT
  3. Maximum continuous operating voltage: 385V
  4. Maximum discharge current Imax: 40KA
  5. Protection mode: 1+1、2+0、3+0、3+1、4+0
main features

Ac power surge protector adopts a variety of lightning protection devices combined protection mode, parallel, integrated base, pluggable module, seismic lock design, with working state indication, failure remote alarm function.


01. Parallel, multi-functional modular design, using 1+1, 2+0, 3+0, 3+1, 4+0 mode;


02. Adopt high performance lightning protection devices, strong continuous current blocking ability, no continuous current generation;


03. Safe and reliable, fully sealed design, no arcing phenomenon;


04. Low voltage protection level, large flow;


05. Exquisite technology, can work in harsh environment for a long time, convenient installation, simple maintenance;

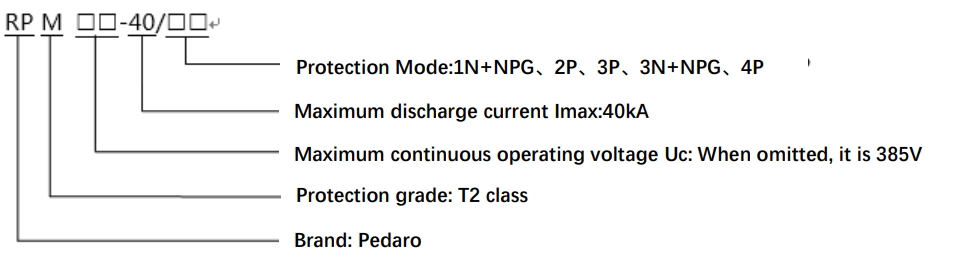

Naming rule

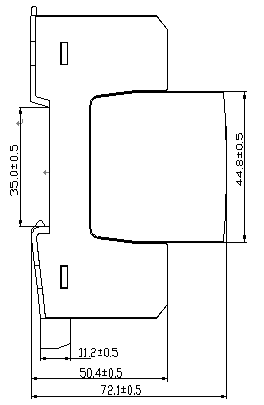

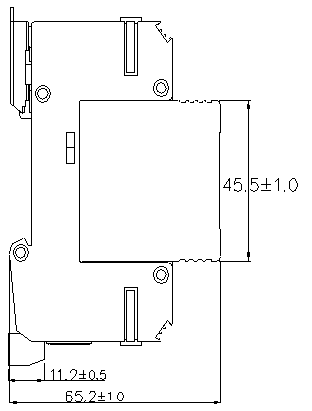

Dimension

           image.png           image.pngimage.png

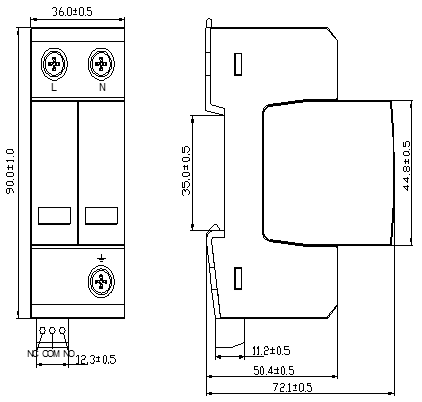

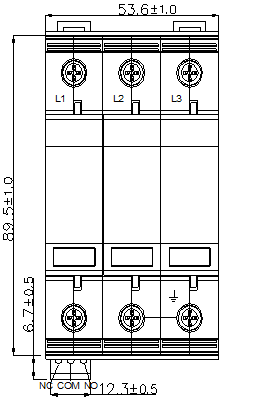

                         RPM-40/1N+NPG(RPM-40/2P)                                                                                               RPM-40/3P

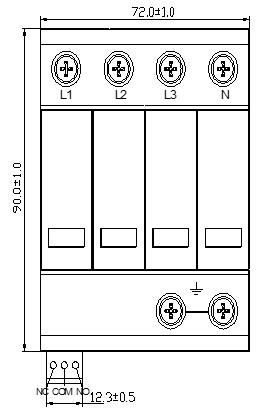

                                    RPM-40/3N+NPG(RPM-40/4P)

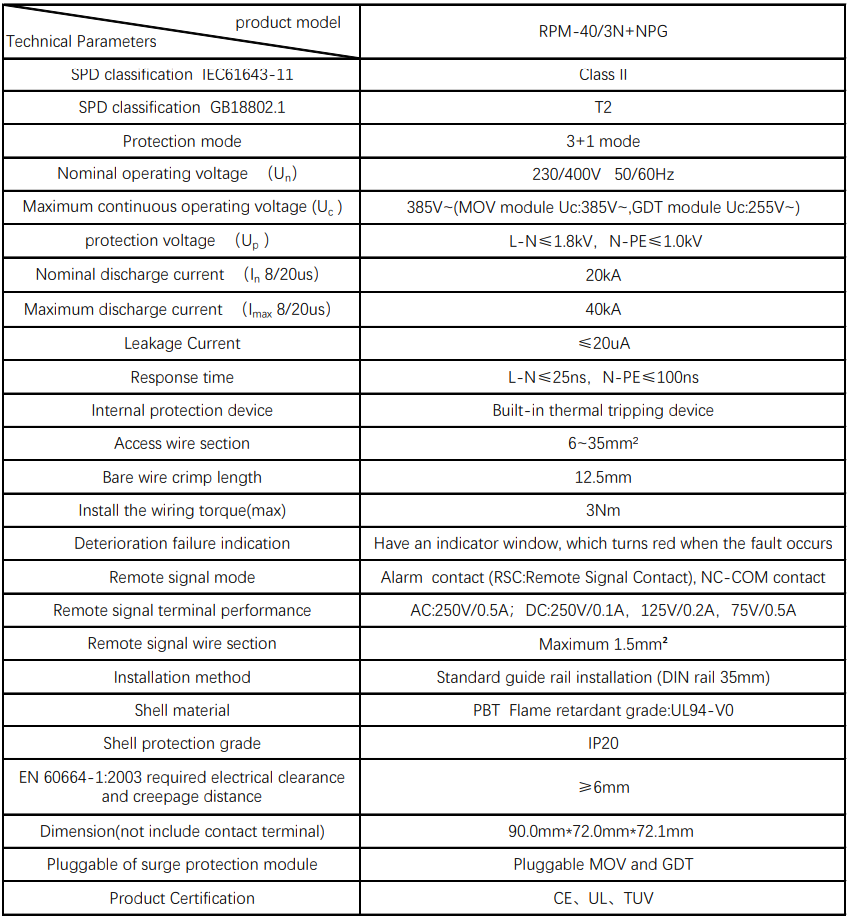

technical parameter
